Nissan Patrol Y60 LWB Long Arm chassis

Description

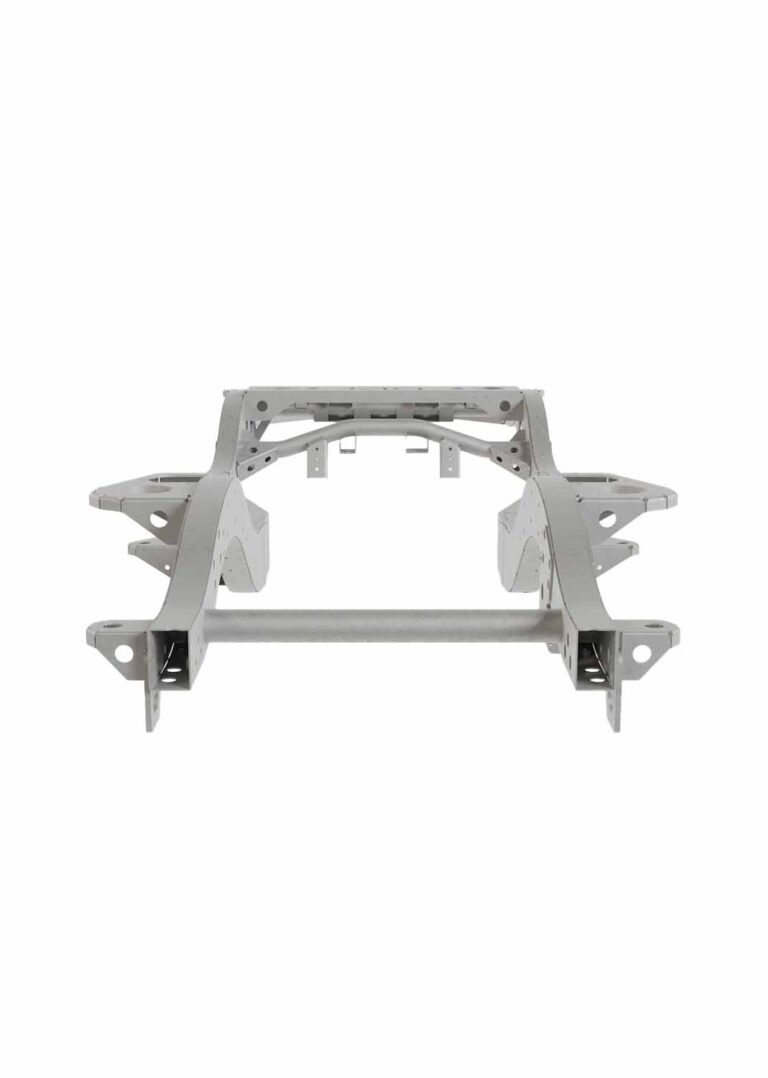

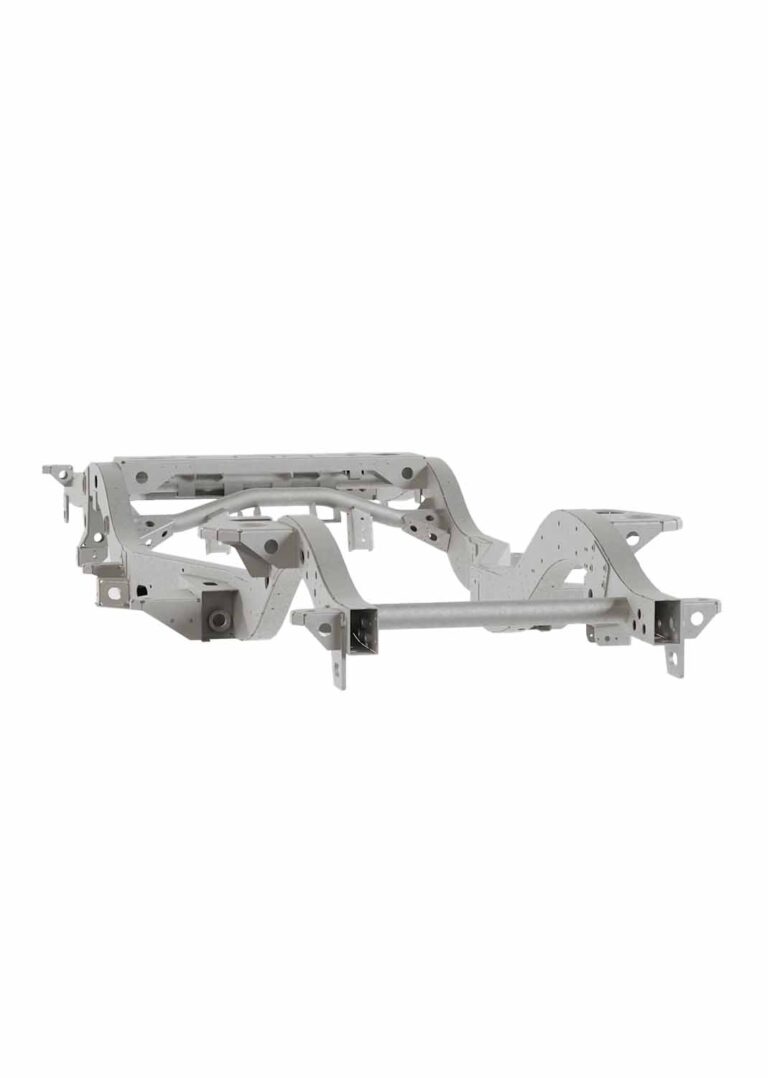

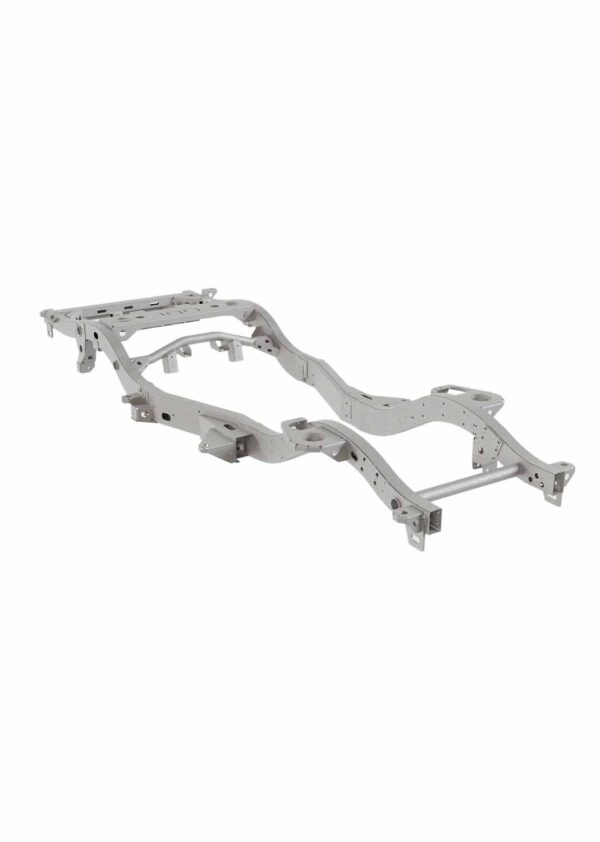

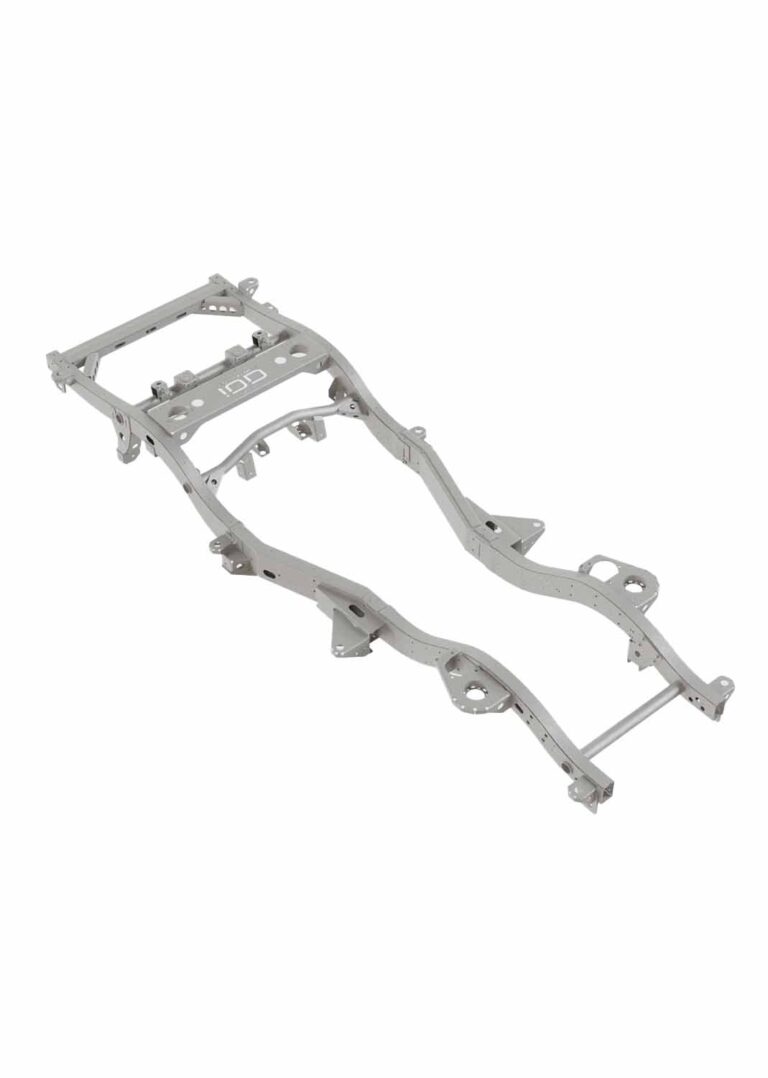

Nissan Patrol Y60 LWB Long Arm chassis

Discover the ultimate foundation for your Nissan Patrol Y60 LWB with the Long Arm chassis. This chassis has been specially designed for demanding off-road enthusiasts and restorers who seek maximum durability, a perfect fit and optimum performance. Thanks to its high-quality construction from hot-dip galvanised steel, this chassis offers long-lasting protection against corrosion and extreme loads, even under the toughest conditions.

Key benefits

• Steering column bracket on the left-hand side for improved fitting options.
• Seamless alignment with the original bracket mounting points for easy installation.
• Additional mounting brackets under the chassis for greater expansion options.
• Reinforced side members at the front and rear for extra strength.
• Reinforced rear spring cups and front spring brackets for increased durability.
• Reinforced Panhard rod brackets and front bumper bracket for optimum stability.
• Fitted with cleaning holes for easy maintenance of the chassis interior.
• Pre-drilled holes for fitting speed bumps and an additional fuel tank.
• Brackets for LongArm control arms and bolt-on engine mounts, enabling engine swaps (such as M57/M60/LS/JZ/UZ/OM606 swaps) without damaging the anti-corrosion coating.
• Lowered beam position to allow for the installation of a large suspension lift.
• Thick-walled threaded bushings that can be re-reamed and re-tapped if the thread is damaged.

Technical specifications

• Material: Hot-dip galvanised steel
• Compatibility: Nissan Patrol Y60 LWB
• Assembly: A precise fit on the vehicle’s original brackets

This chassis is supplied as a complete, ready-to-assemble unit. Please note: engine mounts are not included and must be ordered separately. Ideal for the reconstruction and restoration of off-road vehicles.

Order information

The delivery time is approximately 3 months following payment or a deposit of at least 30%. Transport costs will be determined on a case-by-case basis one week before the end of production.
