GTB2260V_K10 (Small V-band) BMW M57 Top Bracket Turbo Adapter

Description

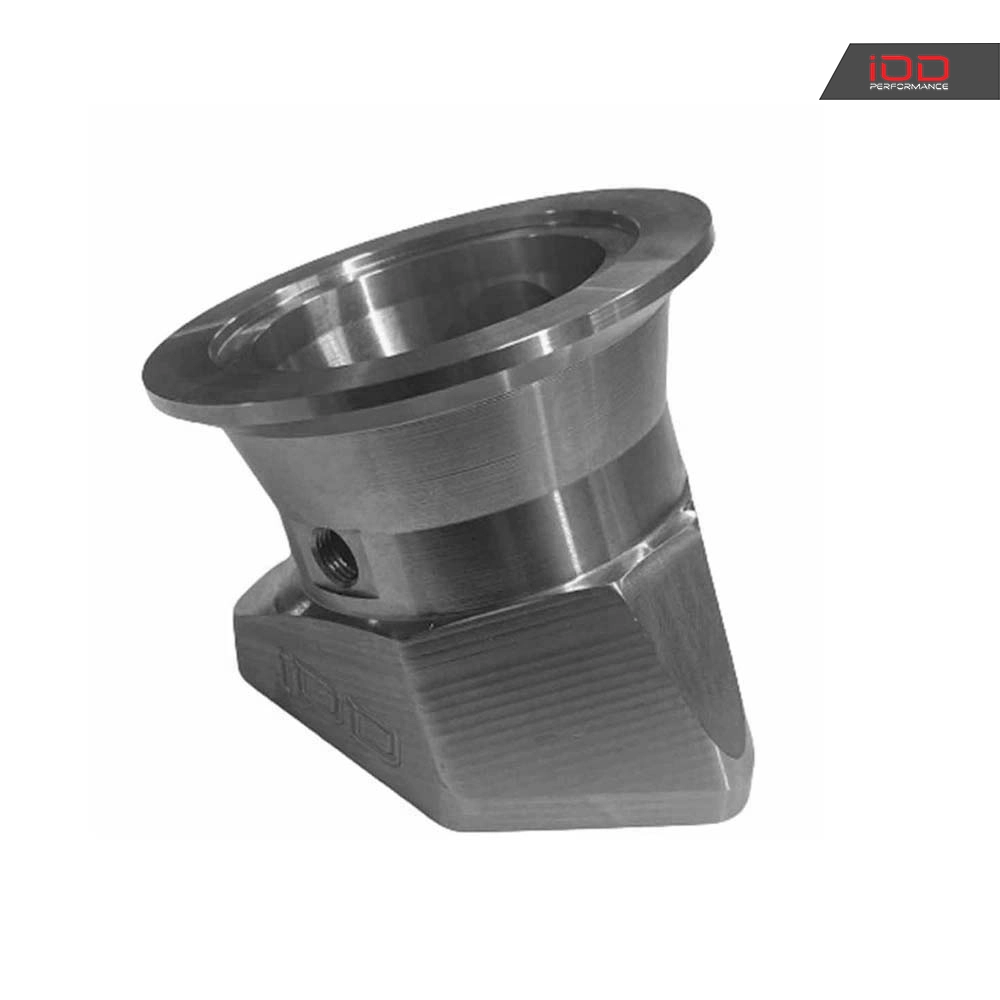

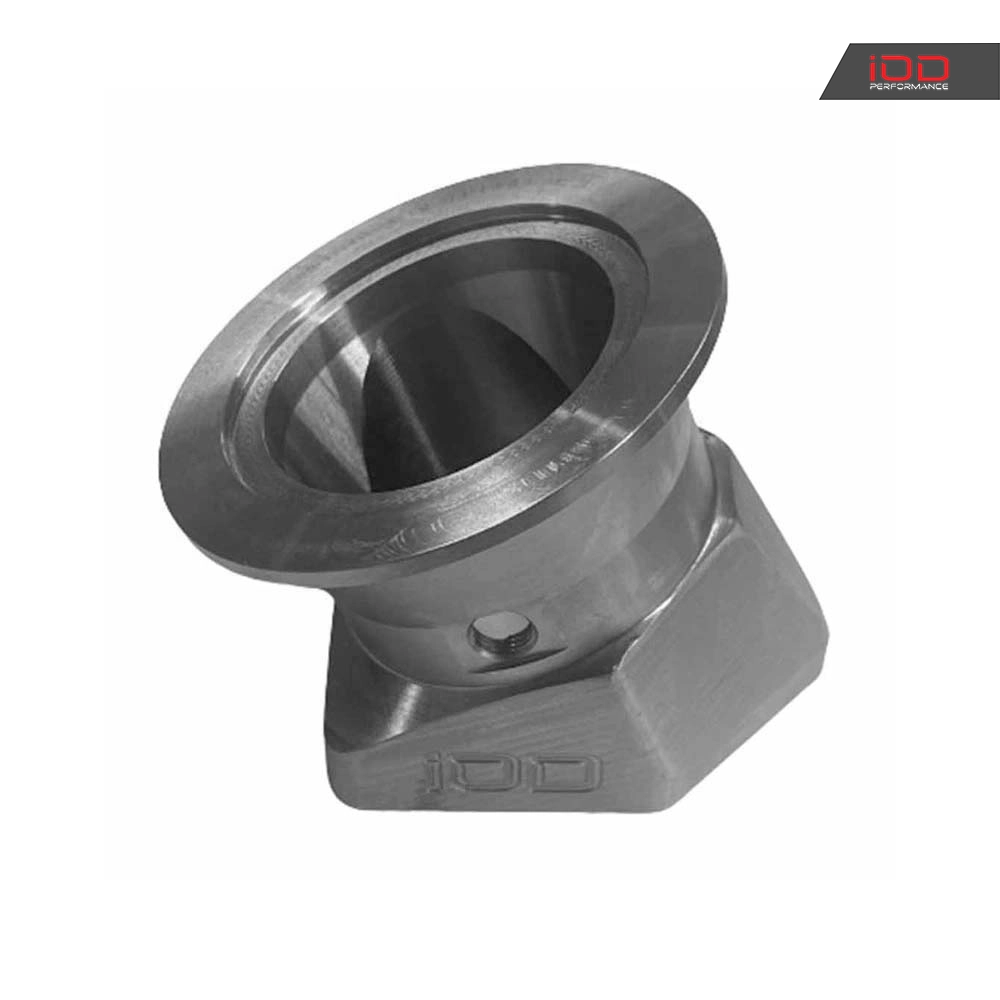

GTB2260V_K10 (Small V-band) BMW M57 Top Bracket Turbo Adapter

Optimise the performance and ease of maintenance of your BMW with the GTB2260V_K10 (Small V-band) Top Bracket Turbo Adapter. This adapter positions the turbocharger above the exhaust manifold, making it easier to access for servicing and maintenance. This design reduces the turbo’s exposure to harmful elements such as water, dust and mud, thereby increasing its service life and reliability.

Benefits of the Top Bracket Turbo Adapter

• The turbocharger is positioned above the exhaust manifold for easier access.
• Easier maintenance and faster service in the event of faults.
• Less exposure to external factors thanks to the higher mounting position.
• Simplifies the intake and exhaust system by mounting the bracket on top of the engine.
• Enhanced protection against external damage thanks to sturdy top bracing.

Technical specifications

• Material: Steel
• The turbocharger must be modified prior to installation.
• The adapter uses the original turbocharger gasket.
• The set includes the adapter and bracket screws.

Please note: The oil drain plug, turbo support and oil pipe are sold separately.

Compatibility

This adapter is compatible with the GTB2260V_K10 turbocharger (small V-band, 77 mm) and various Garrett turbo models, including:

• 806094-0003, 806094-0005, 806094-0006, 806094-0007, 806094-3, 806094-5, 806094-6, 806094-7, 806094-5003S, 806094-5005S, 806094-5006S, 806094-5007S, 806094-0009, 806094-5009S, 806094-9, 806094-0010, 806094-5010S, 806094-10, 806094-11, 806094-5011S, 806094-0011

OE part numbers: 7823202B03, 7823202E05, 7823202G07, 11657823202, 7823202, 11657823270, 7823270.

Suitable vehicles

• BMW 730d (F01), 730dx (F01N), 730Ld (F02N), 530d GT (F07), 530dx GT (F07), 530d (F10/F11), 530dx (F10/F11), X3 30dx (F25), X4 30dx (F26), X530dx (F15), X6 30dx (F16), 330d (F30/F31/F32/F33/F34/F36) – all with 258HP

Engine: N57TU

Upgrade to this high-quality turbo adapter today for optimum performance and long-lasting protection for your turbocharger.
